Recurve Bow, Arrow and Equipments 反曲弓裝備

射箭筆記 - 裝備

上圖: 本人簡易翻譯版本, 期望提供入門者可以清楚了解反曲弓各部分功能及說明. (按圖片可放大)

Full Set Up of my Bow:

1. Riser 弓身:

Hoyt Formula ION-X, 25"

2. Limbs 弓片:

Hoyt Formula F7 Carbon-Foam, 68" 38 lbs.

Hoyt Recurve Manual 反曲弓使用手冊 | 細部介紹與調整 (英文)

•  Hoyt Recurve Owner's Manual

3. Sight 瞄準器:

基本調法： 打上調上，打下調下，打右調右，打左條左。

Shibuya Ultima RC 520 Carbon Recurve Sight

SHIBUYA ULTIMA RC SIGHT 反曲供瞄準器操作手冊 (英日文)

• p1 - Operating Instructions①
• p2 - Operating Instructions②

4. Arrow Rest 箭座:

Shibuya Ultima Recurve Rest

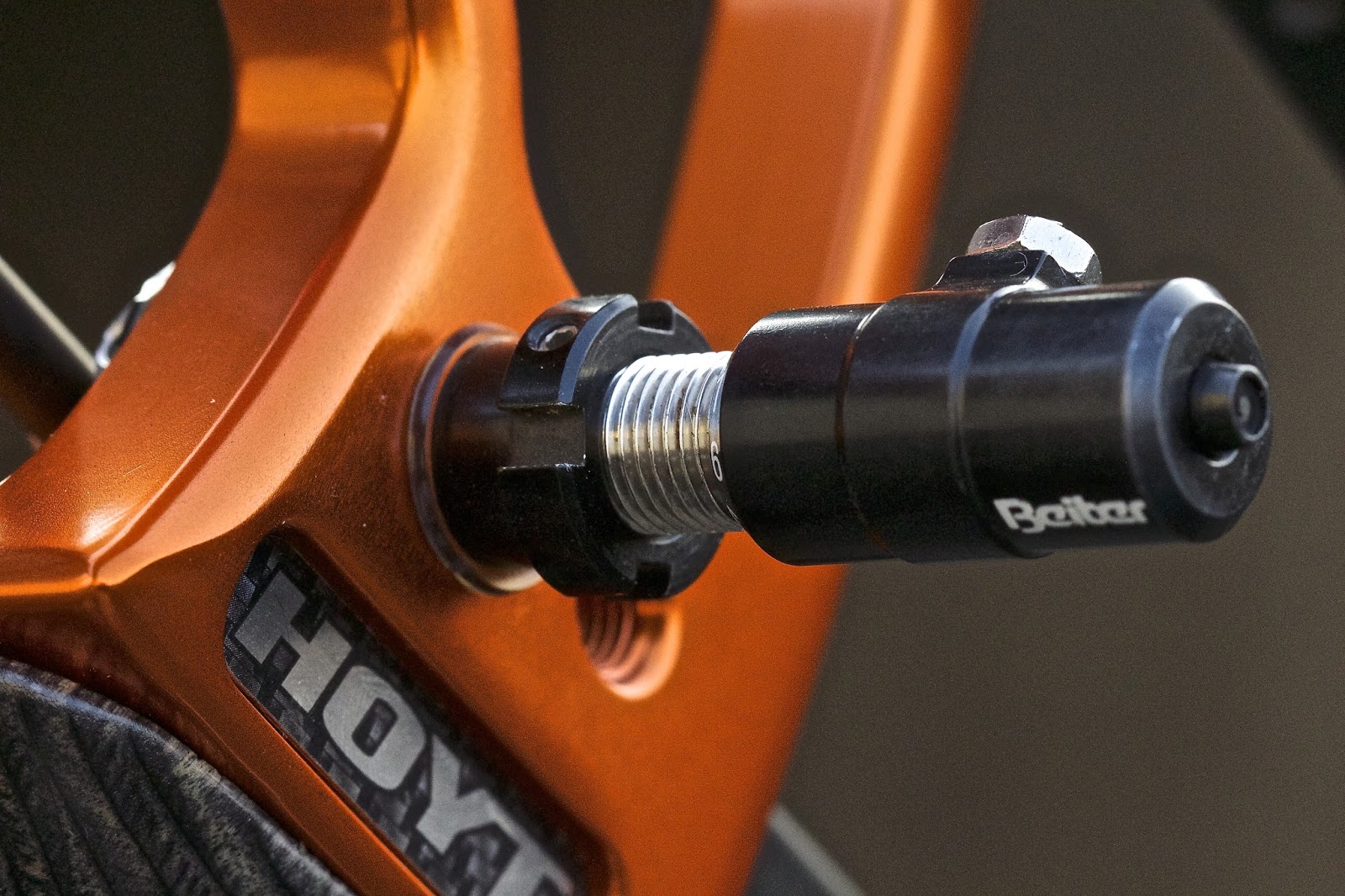

5. Plunger / Button 箭震吸收器: Beiter Plunger

箭震吸收器裡面有彈簧, 彈力過高則箭容易偏左飛出, 彈力過低則箭往右. 採旋入旋出方式調整彈力.

6. Clicker 夾箭片/響片:

6.1) W&W Carbon Clicker & Beiter 0.25 Clicker:

7. Stabilizer 穩定桿

Easton A/C/E

8. Arrow 箭:

箭桿有軟硬度的分別, 一般常見以 "Spine" 數值表示, Spine 數值越低, 箭桿越硬, Spine 數值越高則箭桿越軟.

選箭要先確認自己的 Draw Length (拉距) 和 Draw Weight (拉力) 之範例:

Draw Weight: 拉力要實際使用磅秤來測量. 方法: 拿一根長箭搭在弦上, 將弓拉開, 在plunger/button 的地方做個記號, 把弓勾在掛式磅秤上, 將弓拉開至該位置, 讀磅秤數值即可. 如上圖所示.

Draw Length: 一般來說, 初學後不久會拉得更開些, 所以選箭可稍微再長一些. 拉得更開, 拉力的磅數也會隨之增加, 故初學者選箭可選大個兩磅拉力的箭桿. 若落點介於兩個級數中間, 則應選上一級的箭桿.

練習箭, 類似一隻80元, 100元的這種普通練習鋁箭, 不要浪費錢買了, 不但不夠精准, 射不到幾下就彎了. 品質好的箭, 精密度較為優秀, 可以用非常久, 這才是省錢的方法.

* 必須根據拉距長度, 磅數選合適的箭, 依照 Easton 選箭表購買所需材料:

EASTON CATALOG, SEE PAGE #41 ARROW SELECTION CHART (英文)

•  Easton Catalog

8.1) Point 箭頭: Easton ACC One-Piece Point 04-100 (100 grains)

Heat the point, then having some glue on it. (酒精燈加熱箭頭後, 沾上一些熱熔膠)

And quickly insert the point into the shaft.(趁熱熔膠未凝固前, 將箭頭插入箭桿中)

OK, 完成, 就是這樣子.

8.2) Arrow Shaft 箭桿: Easton A/C/C 3-04 Spine 680 (cut to 27.5" not include point and nock)
Inner: Aluminum (箭桿內層: 鋁)
Outer: Carbon (箭桿外層: 碳纖維)
[建議使用碳鋁箭桿]

8.3) Bushing 箭尾槽: Easton UNI Bush ACC-04

Insert Bushing into Shaft: (將箭尾槽插入箭桿中)

8.4) Nock 箭尾: Easton G Nock Small (White)

 Use a G Nock Tool to insert the nock into Bushing (使用G Nock工具將箭尾塞入箭尾槽中)

8.5) Vanes 羽片:

Kurly Vanes Dayglow Orange RH 45mm

Range O Matic Spin Wing Vanes 1 3-4" - Yel-R

8.6) Spin Wing Black Wrap Tape

9. Bow Stringer 上弓繩: Cartel Bow Stringer

10. Bow Stand 置弓腳架: Cartel RX-10

11. Bow Case 弓箱: W&W Bow Case

12. Quiver 箭袋:

Angel Tournament Quiver ATQ-SP, RH, Medium, Black / White Stripe & White Lace

Material: Clarino 人工皮革

Quality: ★★★★★ 5 / 5
Angel 箭袋品質相當優異! 材料為一種叫做Clarino的人工皮革. 縫線及手工纏繞部分非常的具有美感. 廣為一般選手及射箭運動愛好者使用.

13. Protectors 護具:

13.1) Chest Guard 護胸: Angel Chest Guard RH, Medium Black

13.2) Arm Guard 護臂: AAE Armguard

13.3) Finger Tab 護指: AAE KSL Gold Brass Finger Tab (M)

新買的Finger Tab護指, 需要修剪皮的長度, 減低放箭過程中弓弦離開手指時影響箭的飛行

13.4) Bow Sling - a shoe tie

14. Necessary Tools 必要工具:

14.1) String Serving Tool 護弦纏繞工具: BearPaw BCY String Serving Tool German Designed

14.2) Serving String 護弦: BCY Halo .019

14.3) String Wax 弦臘: String Snot String Wax

14.4) 箭隔片 Bohning Arrow Separator Pad

14.5) Bow Square T 尺: Cartel T-Gauge Gold

14.6) Hot Melt Glue 熱融膠: Bohning Ferr-L-Tite Hot-Melt (orange)

14.7) Alcohol Burner 酒精燈: Bohning Alcohol Burner

14.8) Wick 燈芯: Bohning Extra Wick for Alcohol Burner

14.9) Fletching Jig 黏羽器: Cartel Midas 301 Fletching Jig

14.10) 測量箭重心工具 Beiter Balance Clip Large: Measure the Arrow FOC tool

FOC : Front Of Center

Arrow:
 <---------------------------------<<<

 |----A------^-----B-----------------|

 |---------------L--------------------|

A+B = L
^ : Balance Point

FOC % = (B/L - 0.5) X 100 %

14.11) 測量弓片平行工具 Beiter Limb Gauges (pair) Recurve - Yellow

14.12) Easton G Nock 箭尾插入&箭尾角度調整工具 Easton G Nock Tool

14.13) Saunders Nock Sets Medium (銅環, 用不到)

14.14) 夾銅環夾箭頭用鉗 Cartel Nock Pliers

14.15) Spare Sight: 其他備用準心 Infitec Square Sight Ping 8-32 Thread

14.16) Arrow Puller 拔箭器: Flex 2.0 Arrow Puller Orange

15. Other Tools 其他工具:

15.1) Hex Keys 內六角板手

15.1A) Metric Units 公制內六角

15.1B) Imperial Units 英制內六角

15.2) Scissors 剪刀

15.3) Knife 刀

15.4) A piece of Tire Rubber 輪胎內胎皮

16. Thirteen Meters Simulated Target (as seen size of 70M 122cm target face) 自製 13M 縮小靶

7.2.2.1 The center of the gold will be 130cm above the ground as measured from anestimated even ground level. The tolerance of measurement must not exceed ±5cm.

7.2.2.1 靶心需位於地表上 130 公分處,高低誤差不能超過 ±5 公分。

7.2.2.2 When using a triangular multiple center face set-up at 30m or the four centreface setup the maximum distance above the ground of the center of the upperface (s) will be 162 cm and the minimum distance above the ground of the centerof the lower faces will be 100cm. The minimum distance between the scoringzones of two faces at the same height will be 10cm.
7.2.2.2 當使用 80 公分 3 環靶紙或 4 張 30 公尺中心靶紙於 30 公尺時,位在上方的靶面與下方二個靶面的中心應自地面算起最高 162 公分及 100 公分,兩靶面之得分區應間隔 10 公分。


Print on A4 Paper
Target: Put a Quilt into a paper carton box, that's it. 靶箱: 將一條棉被放入紙箱中即可.

17. Target Stand 自製靶架
Note: Put the Target Face Center at 130 cm Height. (設靶心中心點離地130公分高)

[Video] String Movement Slow Motion - That's why you need a armguard. [HD]
